12 V

Model X-223B X-223BT X-224B X-228B
Photo View
Input Voltage 100 100 100 100
No. of Lamps 1 1 1 1
Lamp Wattage 35W 35W 75W 75W
Input Watts (AVG) 33W 19.5W 71.3W 66W
Input Current(AVG) 0.33 0.197 0.72 0.67
Power Factor 99 99 99 99
Bench Heat Test at 23¡É Ambient Temp 45¡É
Dimensions (L*W*H) 168*40*37 168*40*37 168*40*37 168*40*37
Case Type A
Lamp Type Halogen Halogen Halogen Halogen
Remark   Low   Low


Model B556S-B DUCT DUCT LOW DUCT SW
Photo View
Input Voltage 100 100 100 100
No. of Lamps 2 1 1 1
Lamp Wattage 75W 75W 75W 75W
Input Watts (AVG) 143W 71.3W 66 71.3 66
Input Current(AVG) 1.45 0.71 0.67 0.73 0.71
Power Factor 99 99 99 99 93
Bench Heat Test at 23¡É Ambient Temp 45¡É
Dimensions (L*W*H) 240*39*37 110.4*40*30.5 110.4*40*30.5 132*33*34
Case Type B C C D
Lamp Type Halogen Halogen Halogen Halogen
Remark


Model DUCT220 DUCT220B DUCT220SW SS-220A
Photo View
Input Voltage 220 220 220 220
No. of Lamps 1 1 1 1
Lamp Wattage 75W 75W 75W 75W
Input Watts (AVG) 71.3 71.3 74 68 71.3
Input Current(AVG) 0.32 0.32 0.33 0.32 0.32
Power Factor 99 99 99 93 99
Bench Heat Test at 23¡É Ambient Temp 45¡É
Dimensions (L*W*H) 110.4*40*30.5 132*33*34 132*33*34 168*40*37
Case Type C D D A
Lamp Type Halogen Halogen Halogen Halogen
Remark         Low


Model DUCT230 DUCT230SW
Photo View
Input Voltage 230 230
No. of Lamps 1 1
Lamp Wattage 75 75
Input Watts (AVG) 71.3 73 68
Input Current(AVG) 0.32 0.32 0.31
Power Factor 99 99 93
Bench Heat Test at 23¡É Ambient Temp 45¡É
Dimensions (L*W*H) 110.4*40*30.5 132*33*34
Case Type C D
Lamp Type Halogen Halogen
Remark       Low

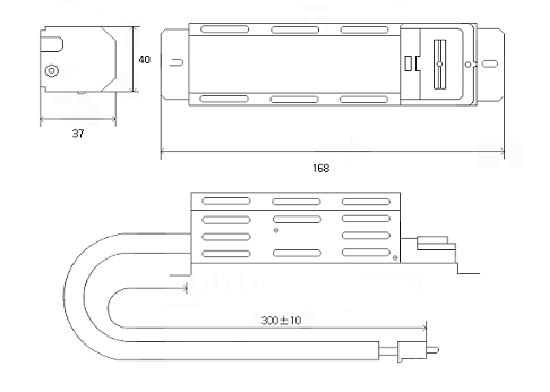

CASE TYPE A

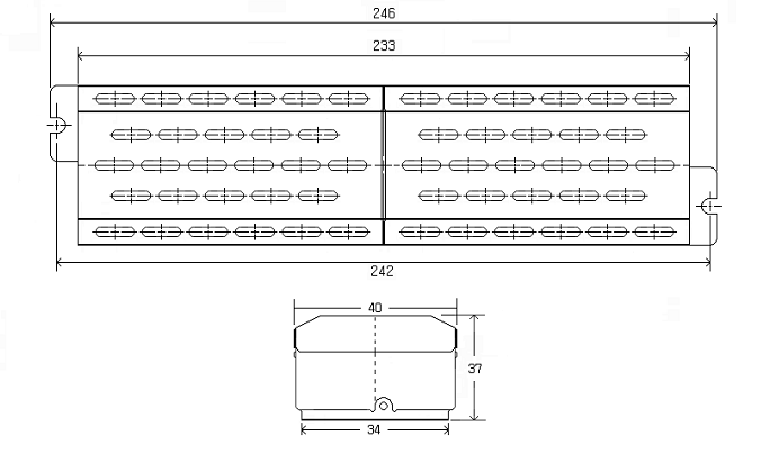

CASE TYPE B

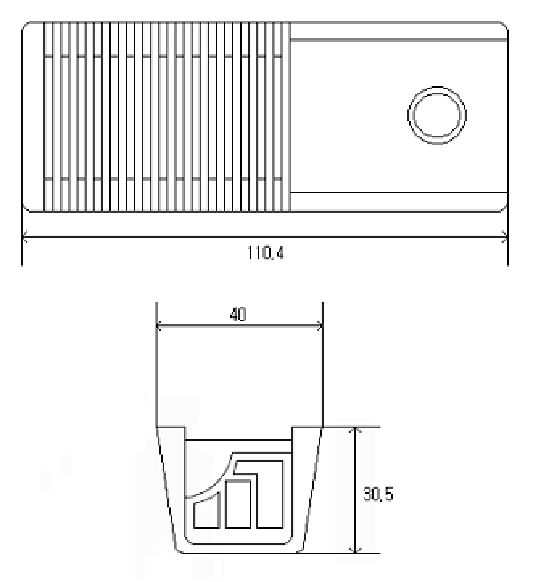

CASE TYPE C

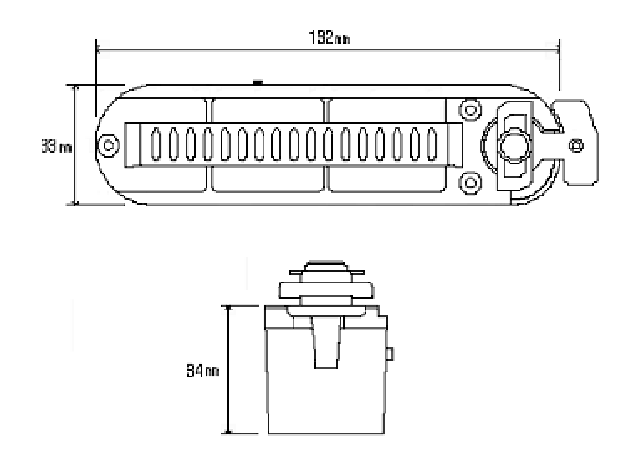

CASE TYPE D
